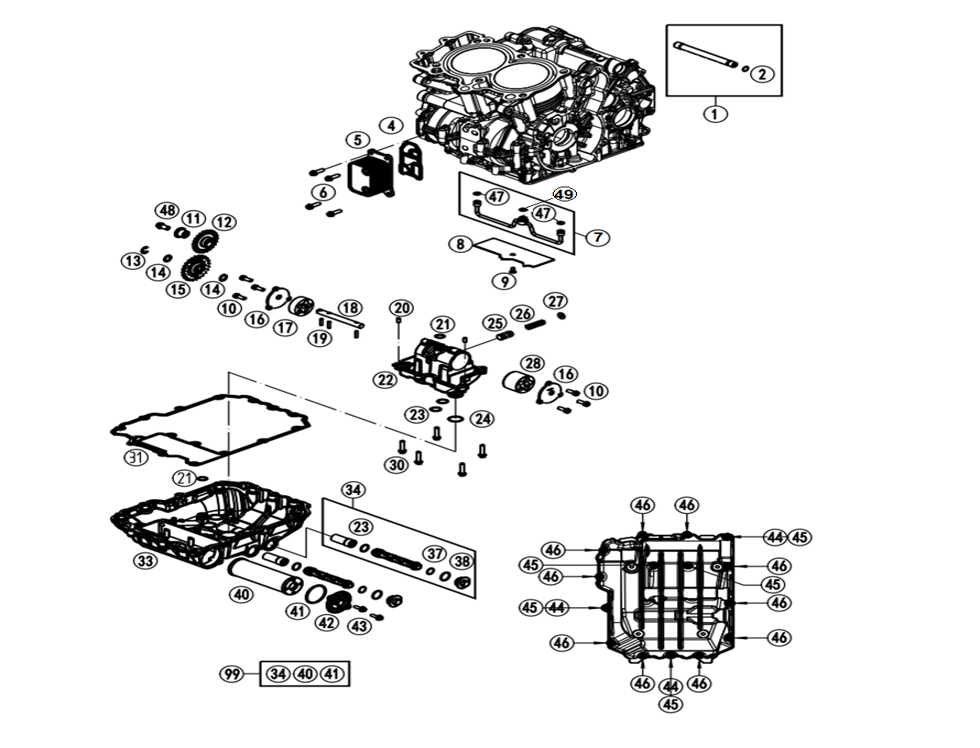

Vue éclatée – LUBRICATING SYSTEM
CFMOTO 800 CF 800MT EXPLORE EDITION 2024
45 pièces
GEARBOX INJECTION PIPE CPL.
Réf. OEM C90030065000
O-RING D10X1
Réf. OEM C0770010010
OIL COOLER GASKET
Réf. OEM C90038051000
OIL/WATTER HEAT EXCHANGER CPL.
Réf. OEM C90038050000
SCREW M6X20
Réf. OEM C0025060206S
OIL HOSE CPL.
Réf. OEM C90038035000
PRESSURE PLATE
Réf. OEM C90030086010
SCREW M5X12
Réf. OEM C0019050121S
CYL. SCREW M6X12
Réf. OEM C014580060126S
BEARING BOLT
Réf. OEM C90038003000
OIL PUMP IDLER GEAR 22Z
Réf. OEM C90038001022
LOCK WASHER DIN 6799 - RS 8
Réf. OEM C0799080000
THRUST WASHER 10/16/0,5
Réf. OEM C90038007010
OIL PUMP GEAR 24Z
Réf. OEM C90038001224
OIL PUMP COVER
Réf. OEM C90038008050
EATON PUMP SET CPL. 14MM
Réf. OEM C90038009014
OIL PUMP SHAFT
Réf. OEM C90038002000
NEEDLE ROLLER 4X15.8
Réf. OEM C0402041580
NEEDLE ROLLER 5X9.8
Réf. OEM C0402050980
O-RING 12X2
Réf. OEM C0770120020
OIL PUMP HOUSING
Réf. OEM C90038012000
O-RING 14X2 NBR 70 SHORE
Réf. OEM C0770140200
O-RING 20X2 NBR 70
Réf. OEM C0770020020
CONTROL PISTON
Réf. OEM C90038128000
OIL COMPRESSION SPRING
Réf. OEM C90038026000
SHIM
Réf. OEM C90037073000
EATON PUMP SET 30 MM
Réf. OEM C90038010000
SCREW M6X25
Réf. OEM C0025060256
OIL+SUMP+GASKET
Réf. OEM C90030086100
OIL PAN GREY
Réf. OEM C9003008500024
OIL PAN BLACK
Réf. OEM C90030085000FBP
OIL SCREEN CPL.
Réf. OEM C90038021200
O-RING 12.5X1.5
Réf. OEM C0770125015
O-RING 17,00X2,00
Réf. OEM K-0770170200
OILFILTER(WITH BYPASS)
Réf. OEM C90038015200
O-RING 39,34X2,62
Réf. OEM C07700390261
OILFILTER COVER
Réf. OEM C90038041200
SCREW M5X16
Réf. OEM C0025050166
FITTING SLEEVE 6X8X11
Réf. OEM C90030024000
SCREW M6X35
Réf. OEM C0025060356
SCREW M6X30
Réf. OEM C0025060306
O-RING 6X2,5
Réf. OEM C0770060025
CYL. SCREW M8X16
Réf. OEM C0025080166S
O-RING 7X2,5
Réf. OEM C0770070025
OILFILTER SERVICE KIT
Réf. OEM C00050000068
LUBRICATING SYSTEM
