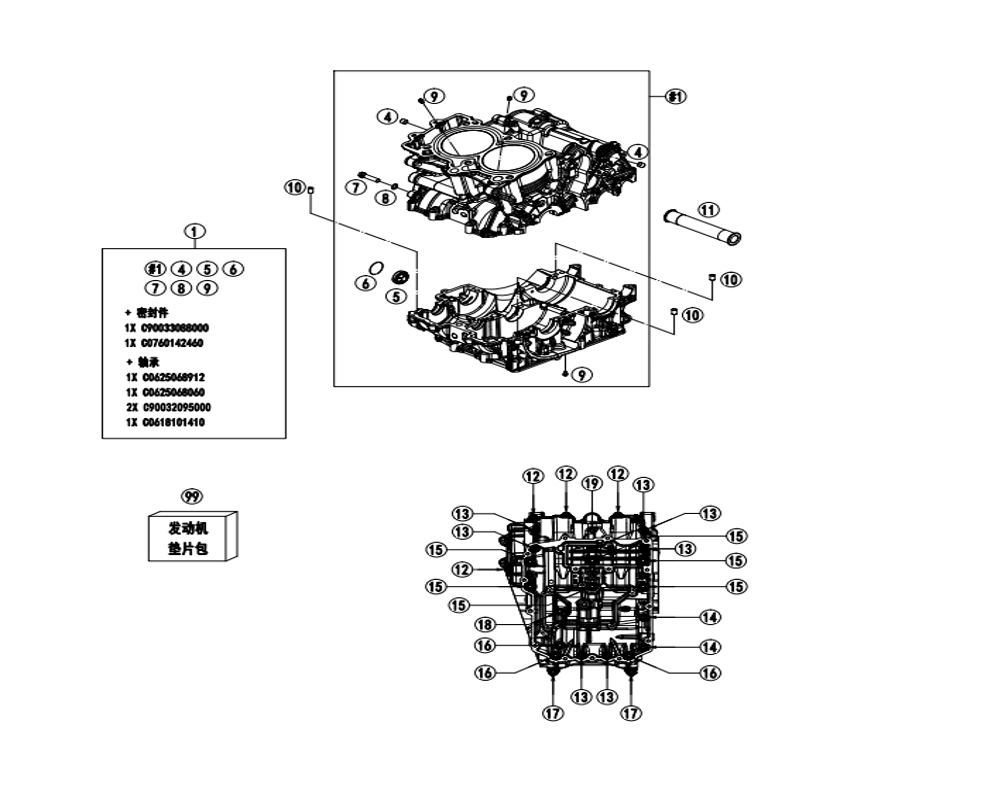

Vue éclatée – ENGINE CASE
CFMOTO 800 CF800MT EXPLORE ELECTRONIC SUSPENSION 2026
18 pièces
1
ENGINE CASE CPL. BLACK
Réf. OEM C90030000244FBP
4
SCREW 10X1-8 DIN 906
Réf. OEM C0906100100
5
OIL LEVEL VIEWER
Réf. OEM C90030019200
6
CIRCLIP RB30X1
Réf. OEM C90030019050
7
SCREW. M8X35
Réf. OEM C0025080356
8
CU RING D8,2/13/1
Réf. OEM C0603082131
9
PISTON NOZZLE
Réf. OEM C90030063070
10
FITTING SLEEVE 6X8X11
Réf. OEM C90030024000
11
SWING ARM BUSH
Réf. OEM C90030010000
12
HEX COLLAR SCR.,M6X30,ISA 40 W.WASHER
Réf. OEM C00002506030U0
13
HEX COLLAR SCR.,M6X60,ISA 30 W.WASHER
Réf. OEM C00002506060U0
14
SCREW M8X90
Réf. OEM C0025080906
15
HEX COLLAR SCR.,M8X90,ISA 40 W.WASHER
Réf. OEM C00002508090U0
16
SCREW M8X65
Réf. OEM C0025080656
17
SCREW M8X55
Réf. OEM C0025080556
18
SCREW M8X45
Réf. OEM C0025080456
19
HEX COLLAR SCR.,M8X65,ISA 40 W.WASHER
Réf. OEM C00002508065U0
99
GASKET-SET
Réf. OEM C90030099000
ENGINE CASE
