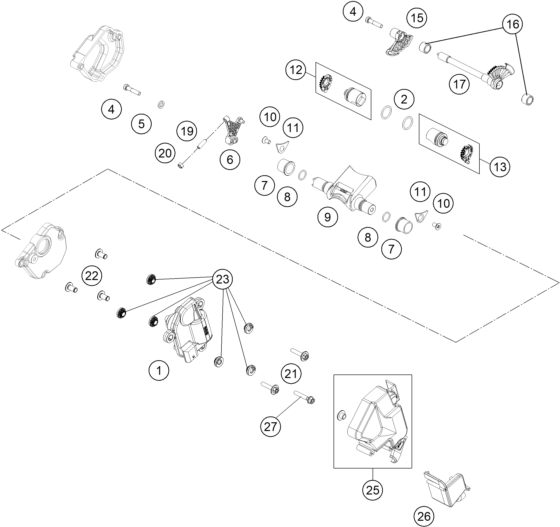

Vue éclatée – VALVE D'ÉCHAPPEMENT
GASGAS EC 250 EU 2025
23 pièces
1
exhaust control actuator cpl.,
Réf. OEM A45041072033
2
joint or
Réf. OEM 0770160021
4
vis cylindrique din 6912 - m5x
Réf. OEM 0012050253S
5
rondelle
Réf. OEM 50233041000
6
control flap lever,
Réf. OEM A44037380000
7
exaust flap bushing
Réf. OEM 50437023100
8
o-ring 12x1.5 fpm75,
Réf. OEM 07700120151
9
control flap 250,
Réf. OEM A44037020000
10
hex lobe countersunc screw m5x
Réf. OEM 0019050106S
11
retaining plate f. cs bearing
Réf. OEM 75030085000
12
power valve right cmpl.,
Réf. OEM A44037362044
13
power valve left cmpl.,
Réf. OEM A44037361044
15
controlgate right,
Réf. OEM A44037365000
16
needle sleeve hk 1010 10x14x10
Réf. OEM 0618101410
17
intermediate shaft cmpl.,
Réf. OEM A44037370033
19
grub screw m5x16 with ah,
Réf. OEM 0913050160
20
nut m5 sw7,
Réf. OEM 0934050040
21
hh collar screw, m5x25, isa 30,
Réf. OEM 0000240502500S
22
actuator bushing,
Réf. OEM A45041072010
23
damper actuator,
Réf. OEM A45041072005
25
actuator protection cap,
Réf. OEM A42037096000
26
actuator protection cap,
Réf. OEM A42037096020
27
hh collar screw m5x30 tx30
Réf. OEM 0025050306
