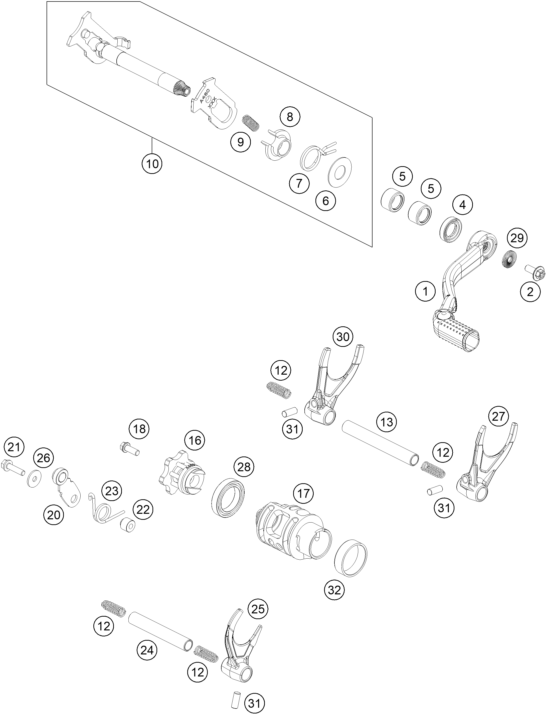

Vue éclatée – mécanisme de sélection
GASGAS MC 250 2026
27 pièces
1
sélecteur de vitesse origine ktm/gasgas
Réf. OEM A42034031000
2
hh collar screw m6x15 tx30
Réf. OEM 0024060156S
4
joint spi
Réf. OEM 0760142460
5
roul.aiguilles
Réf. OEM 54632095000
6
rondelle
Réf. OEM 54634050000
7
ressort de rappel 03
Réf. OEM 54834014000
8
ressort d.guidage
Réf. OEM 54634020000
9
ressort
Réf. OEM 56534013100
10
shift shaft cpl.,
Réf. OEM A46034005033
12
compression spring l=25mm d=0.9mm,
Réf. OEM 58038023400
13
shift fork shaft (l=66 mm),
Réf. OEM A46034020000
16
shift star cmpl.,
Réf. OEM A46034015000
17
shift drum 5 gear,
Réf. OEM A47034012000
18
hh collar screw m6x30 tx30,
Réf. OEM 0025060306S
20
detent arm cmpl.,
Réf. OEM A46034024044
21
hex collar screw, m5x20 isa30
Réf. OEM 0025050206S
22
entretoise selecteur 250/360 9
Réf. OEM 54634052300
23
ressort de levier 2003
Réf. OEM 54834023000
24
shift fork shaft (l=93 mm),
Réf. OEM A46034019000
25
shifting fork 4th/5th gear,
Réf. OEM 79234001000
26
rondelle
Réf. OEM 0349000050
27
shifting fork 2nd gear,
Réf. OEM 79234002000
28
grooved ball bearing 6805 jr c3,
Réf. OEM 0410002500700
29
pair nordlock washer m6
Réf. OEM 50233041500
30
shifting fork 1st/3rd gear,
Réf. OEM 79234003000
31
aiguille 91
Réf. OEM 0402061480
32
friction bearing controller
Réf. OEM 79234012010
