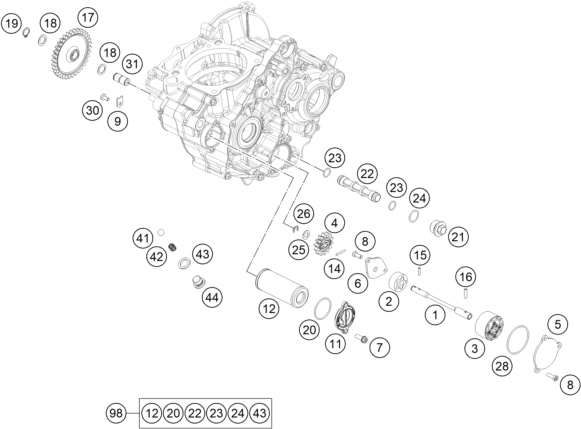

Vue éclatée – système de lubrification
GASGAS 250 MC 250F EU 2023
32 pièces
1
oil pump shaft
Réf. OEM 79238002100
2
oilpump rotor-set 12mm cpl.
Réf. OEM 59038011112
3
pompe à huile 22mm gasgas mc-f/ec-f
Réf. OEM 61238111000
4
oil pump gear,
Réf. OEM 77038001200
5
oil pump cover left
Réf. OEM 79238004000
6
oil pump cover right
Réf. OEM 79238003000
7
vis m6x16 tx30
Réf. OEM 0025060166
8
cyl. screw din6912 m5x14 8.8
Réf. OEM 0984050143S
9
axial-circlip
Réf. OEM 77238061050
11
oil filter cover 08
Réf. OEM 77338041200
12
filtre a huile 4tps 07-12 / 3
Réf. OEM 77338005100
14
pion centage pompe a huile duk
Réf. OEM 0402251980
15
rouleau din5402 nrb2
Réf. OEM 0402251180
16
rouleau nrb 4x15,8 g2
Réf. OEM 0402041580
17
oil pump intermediate gear,
Réf. OEM 79238006300
18
rondelle cable embrayage
Réf. OEM 0988121805
19
circlips
Réf. OEM 0471120010
20
o-ring 33,05x1,78
Réf. OEM 07703305178
21
plug m20x1,5 ws=13
Réf. OEM 59038017100
22
oil screen
Réf. OEM 59038016100
23
o-ring 12,5x1,5 viton v75
Réf. OEM 07701250151
24
jt thorique bouchon crepine 00
Réf. OEM 0770020170
25
rondelle 600/92
Réf. OEM 58038007755
26
rondelle frein
Réf. OEM 0799060000
28
o-ring 44,00x2,00 viton
Réf. OEM 0770440020
30
hex coll. screw m5x10 isa30 self-locking,
Réf. OEM 0025050106S
31
bushing pin
Réf. OEM 77038013100
41
bille lubrification gasgas ktm din5401-9
Réf. OEM 0401090003
42
ressort système de lubrification gasgas
Réf. OEM 58038023300
43
joint cuivre
Réf. OEM 58038022000
44
plug screw sas m12x1,5
Réf. OEM 78036024000
98
kit filtre à huile gasgas origine
Réf. OEM 00050000083
