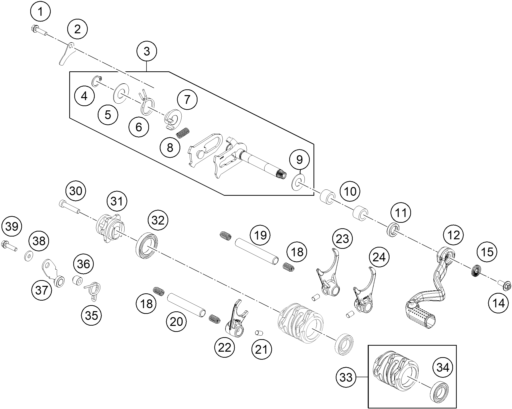

Vue éclatée – mécanisme de sélection
GASGAS MC 65 2025
31 pièces
1
hex collar screw m5x12 isa30 ss,
Réf. OEM 0025050126S
2
shifting shaft fender ret. pl.
Réf. OEM 46234005110
3
shift shaft cmpl.,
Réf. OEM A40534005044
4
clips axe selecteur 125
Réf. OEM 0471140100
5
rondelle
Réf. OEM 54634050000
6
ressort de rappel 03
Réf. OEM 54834014000
7
ressort d.guidage
Réf. OEM 54634020000
8
ressort
Réf. OEM 56534013100
9
rondelle crantee
Réf. OEM 49033013000
10
roulement aiguille 12 x18 x 12
Réf. OEM 46034027000
11
joint spy
Réf. OEM 0760122050
12
gear shift lever,
Réf. OEM A40534031000
14
hh collar screw m6x15 tx30
Réf. OEM 0024060156S
15
pair nordlock washer m6
Réf. OEM 50233041500
18
compression spring l=25mm d=0.9mm,
Réf. OEM 58038023400
19
shift fork shaft (l=75.5 mm),
Réf. OEM A40534019000
20
shift fork shaft (l=66 mm),
Réf. OEM A46034020000
21
aiguille zrb 6x10
Réf. OEM 0402061000
22
shift fork main shaft
Réf. OEM 46234001000
23
shift fork countershaft r/s
Réf. OEM 46234002000
24
shift fork countershaft ll/s
Réf. OEM 46234003000
30
vis chc din 912
Réf. OEM 0912060303
31
shift star cmpl.,
Réf. OEM A40534015100
32
grooved ball bearing 6805 jr c3,
Réf. OEM 0410002500700
33
shift roller cpl.
Réf. OEM 46234012033
34
roulement 6903 c4
Réf. OEM 0625069034
35
ressort de levier 2003
Réf. OEM 54834023000
36
entretoise selecteur 250/360 9
Réf. OEM 54634052300
37
detent arm cmpl.,
Réf. OEM A46034024044
38
rondelle din 9021
Réf. OEM 0021050003
39
hh collar screw m5x25 tx30
Réf. OEM 0025050256S
